Description

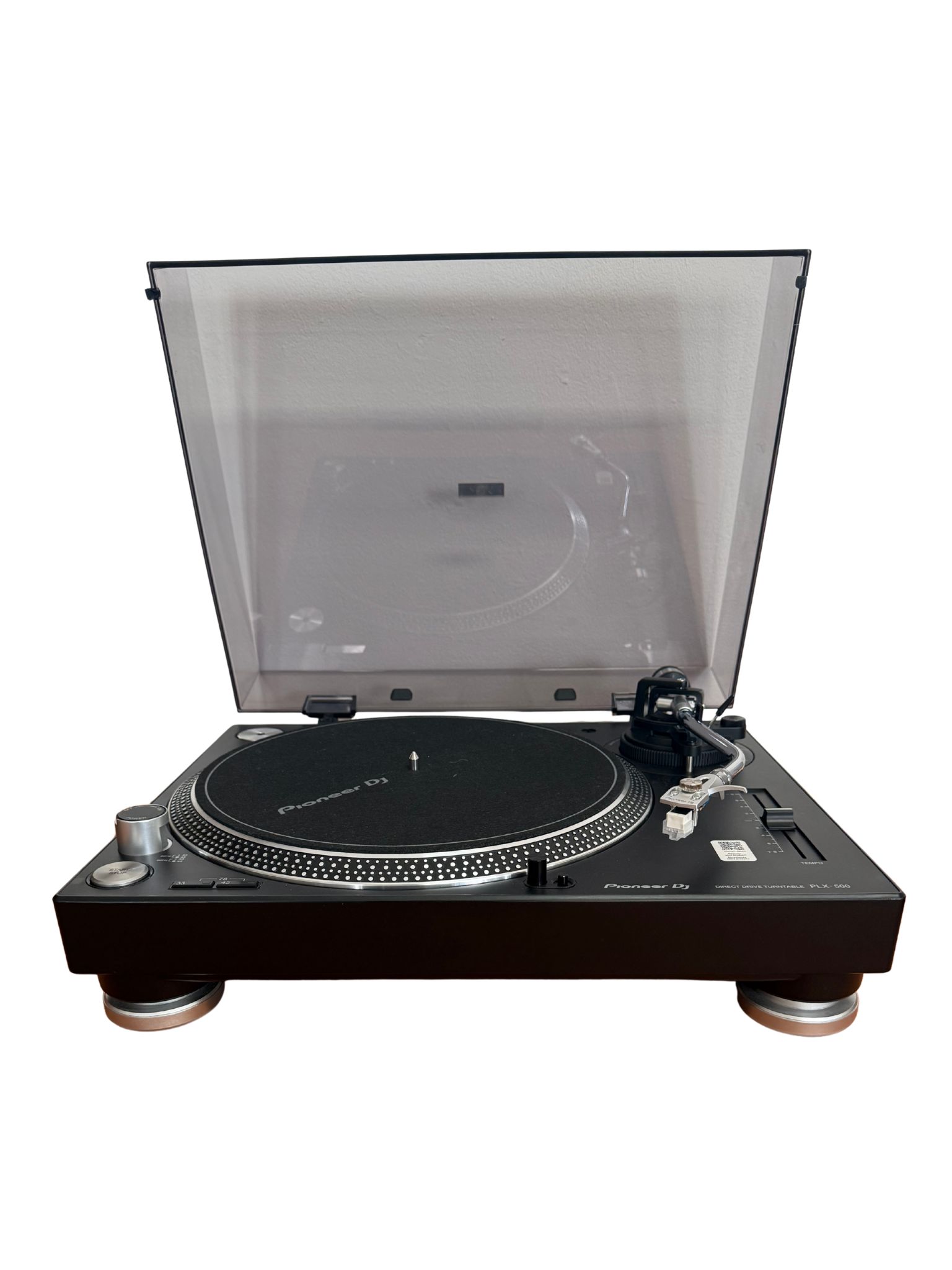

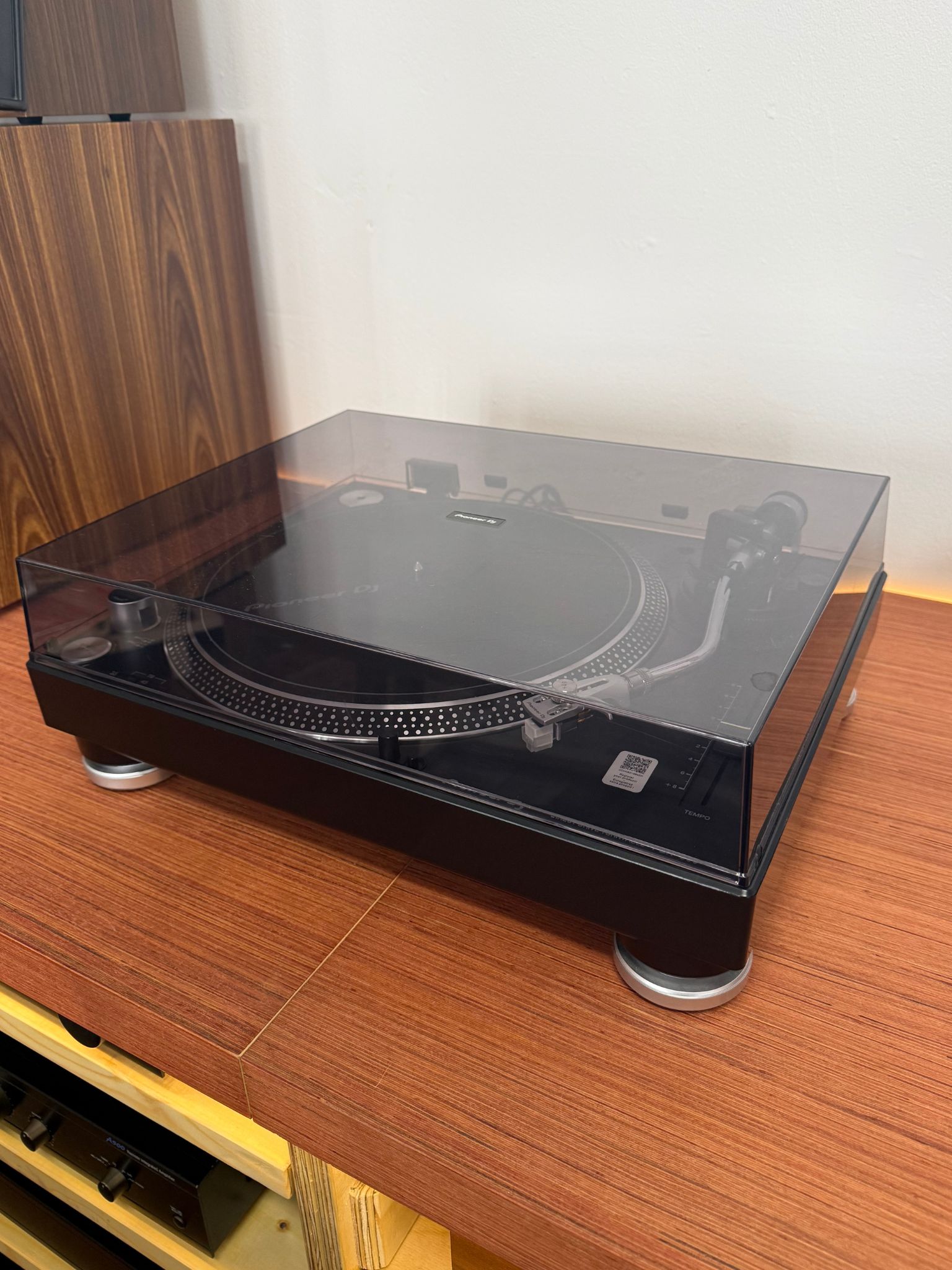

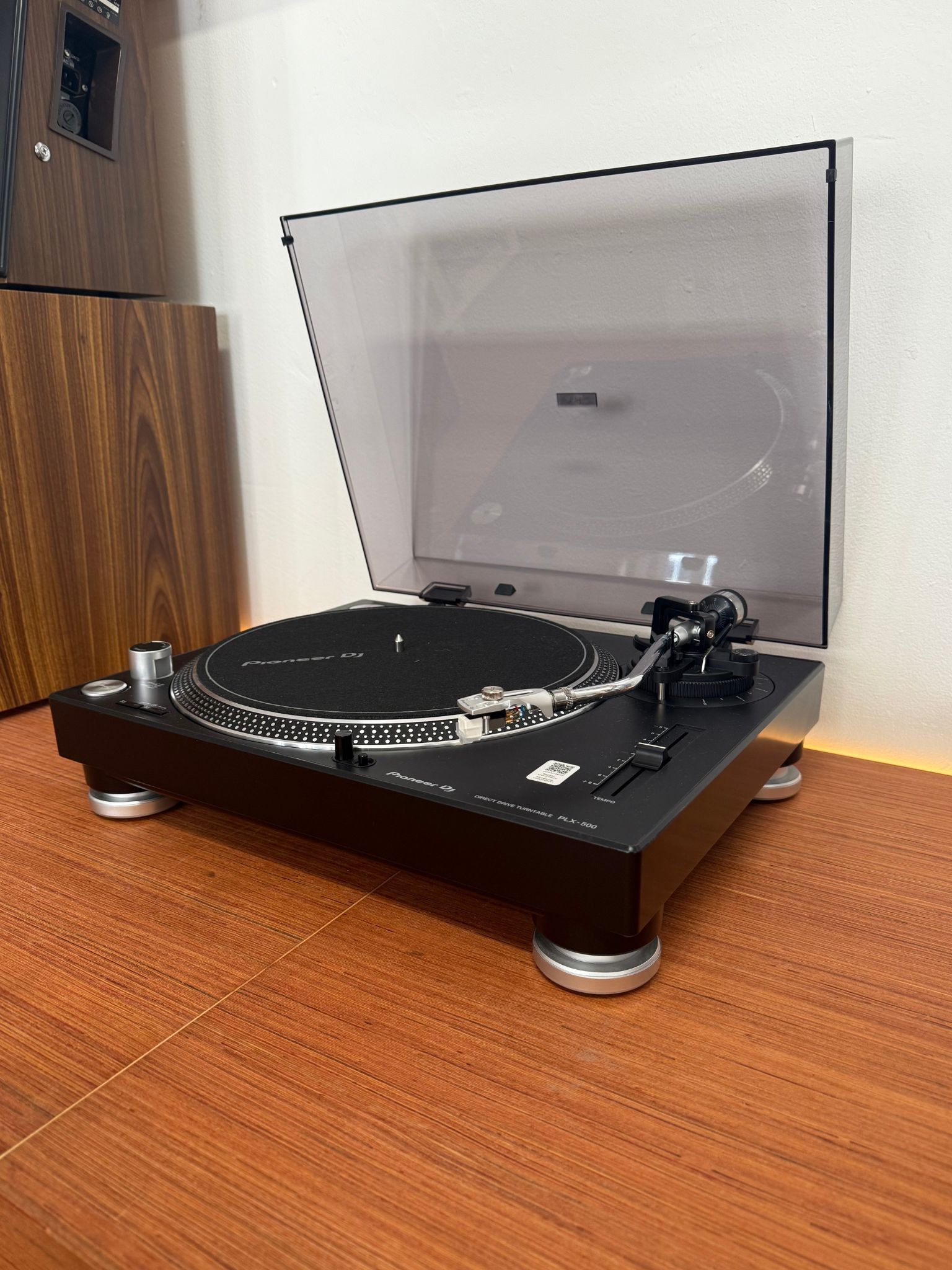

Pioneer PLX-500 – Direct Drive Turntable
The Pioneer PLX-500 is a high-torque, direct-drive turntable designed for DJs and home listening, featuring USB digital output for recording vinyl to WAV files via Rekordbox. It features a 3-phase brushless DC motor, 33⅓/45/78 RPM speeds, and includes a stylus, headshell, and built-in phono pre-amp for direct speaker connection.
Key Technical Specifications
Drive Method: Servo-type direct drive
Motor: 3-phase, brushless DC motor
Speeds: 33⅓, 45, 78 RPM
Starting Torque: 1.6 kgf . cm
Wow & Flutter: 0.15%
S/N Ratio: 50 dB
Platter: Aluminum die-casting, 332 mm diameter
Tonearm and Output

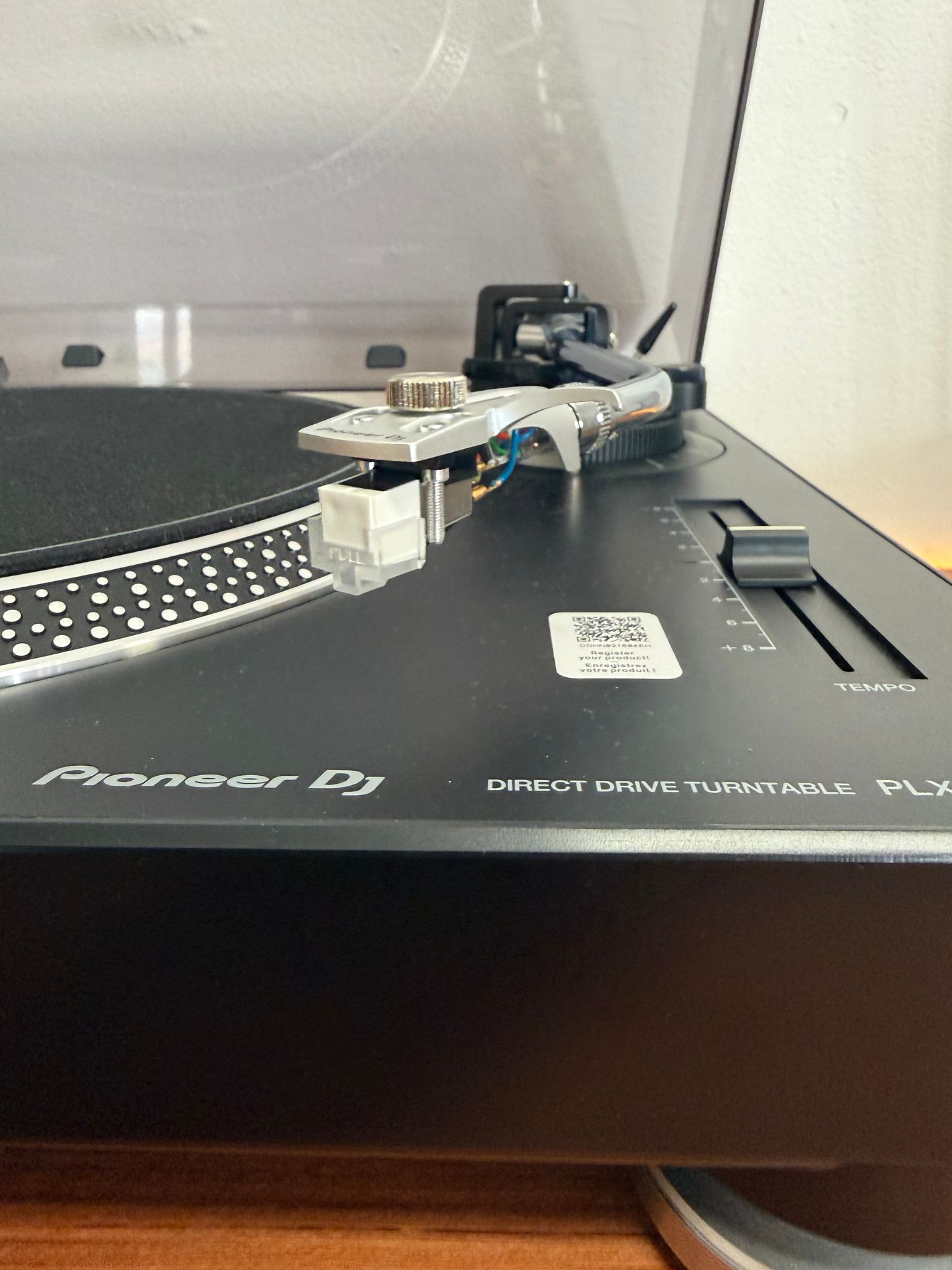

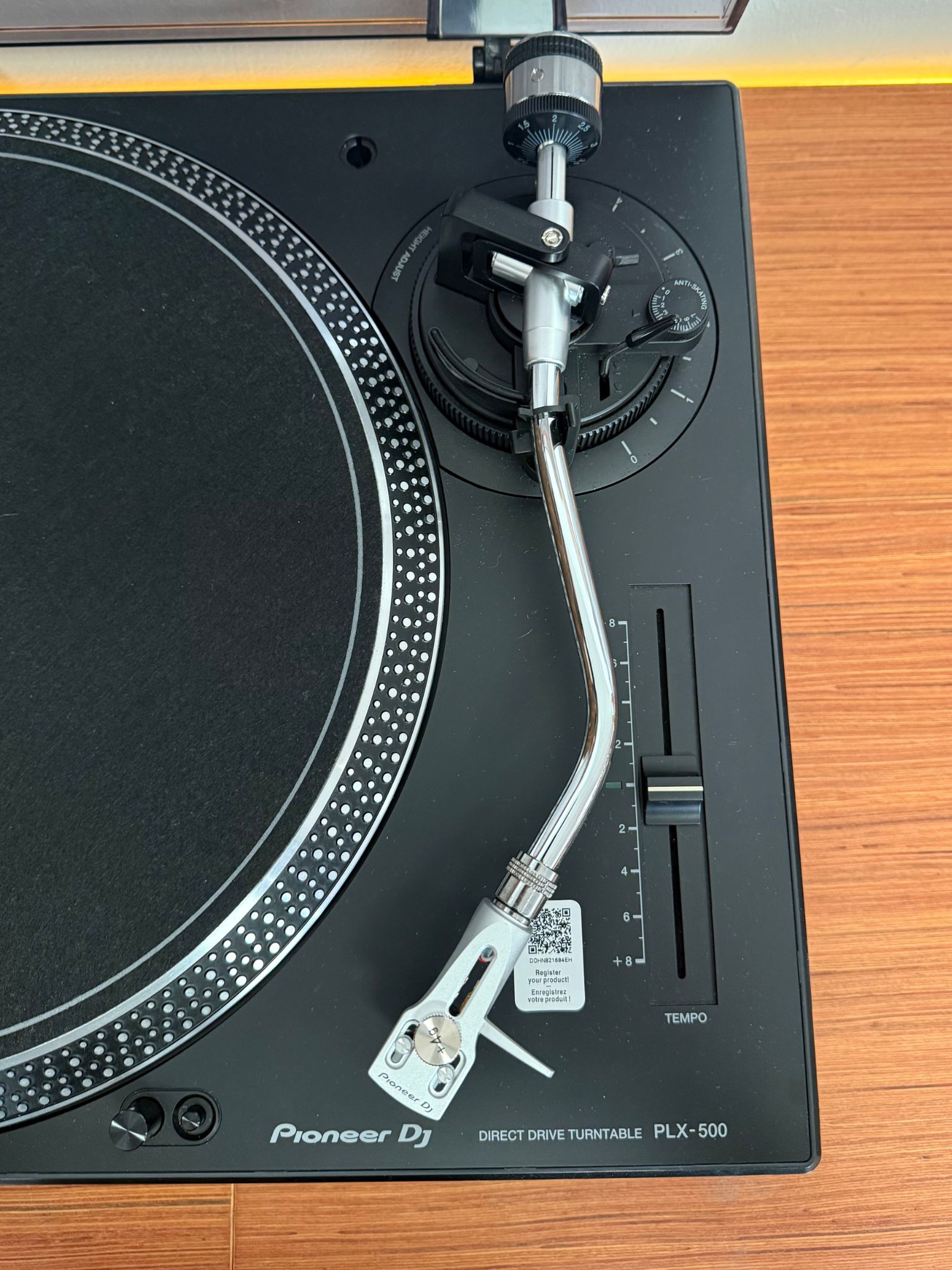

Tonearm Type: Universal S-shape, static balance
Outputs: 1 PHONO/LINE (RCA), 1 USB-B
Pitch Control: +/-8%
Dimensions and Weight
Width: 450 mm
Height: 159 mm
Depth: 368 mm
Weight: 10.7 kg
