Description

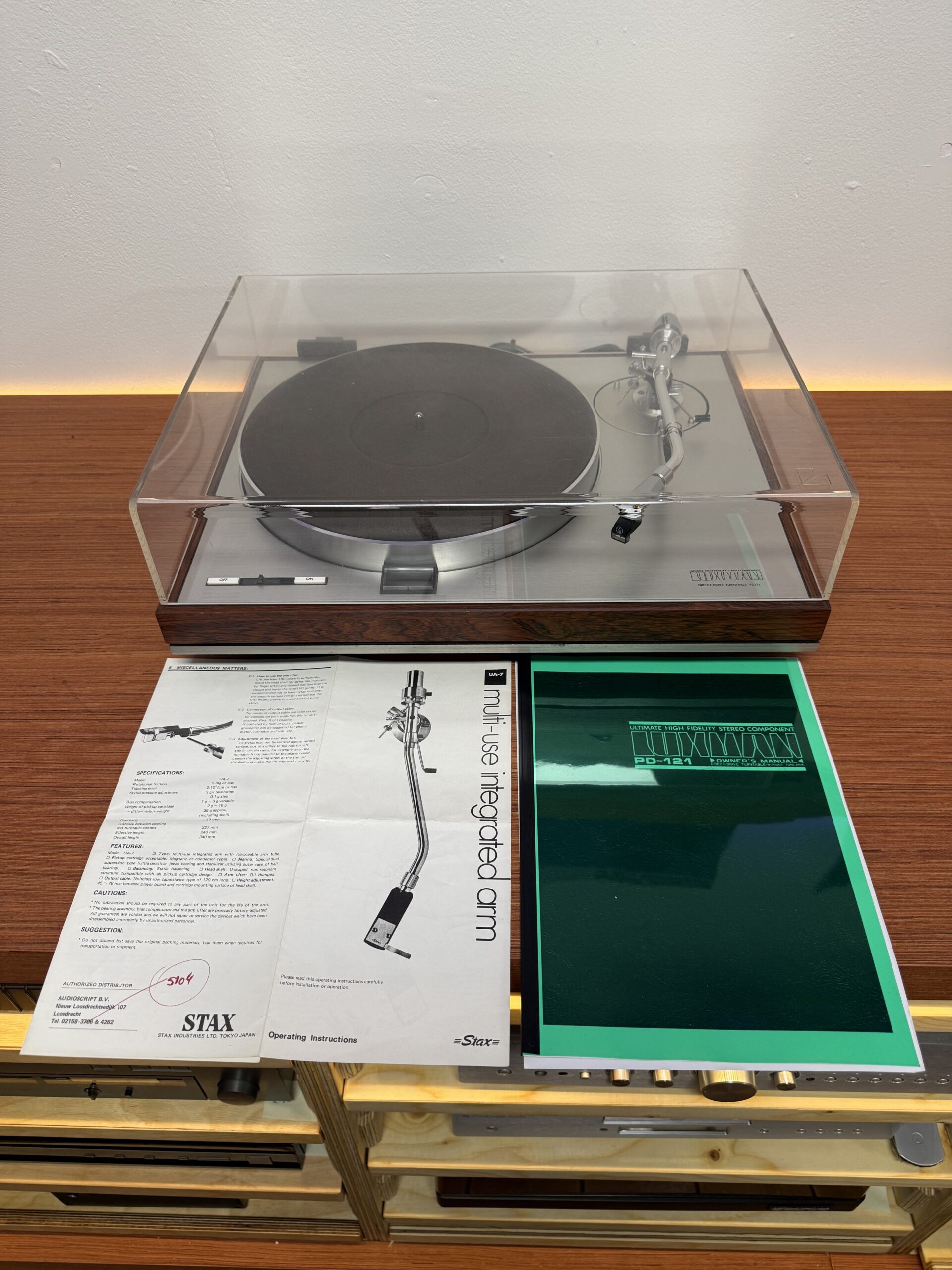

Luxman PD 121 – DC-Servo Direct-Drive Turntable (1976 – 1978)
Description
Turntable
The Luxman PD121 is a two-speed, direct drive turntable with the following features:
Motor suspension
Heavy-weight turntable platter
Triple-structure insulator
DC-servo direct drive motor with electronic commutation
Bayonet mount tonearm base
Unique two colour stroboscope
Crystal clear acrylic cover
Simulated leather phono mat
Tone Arm

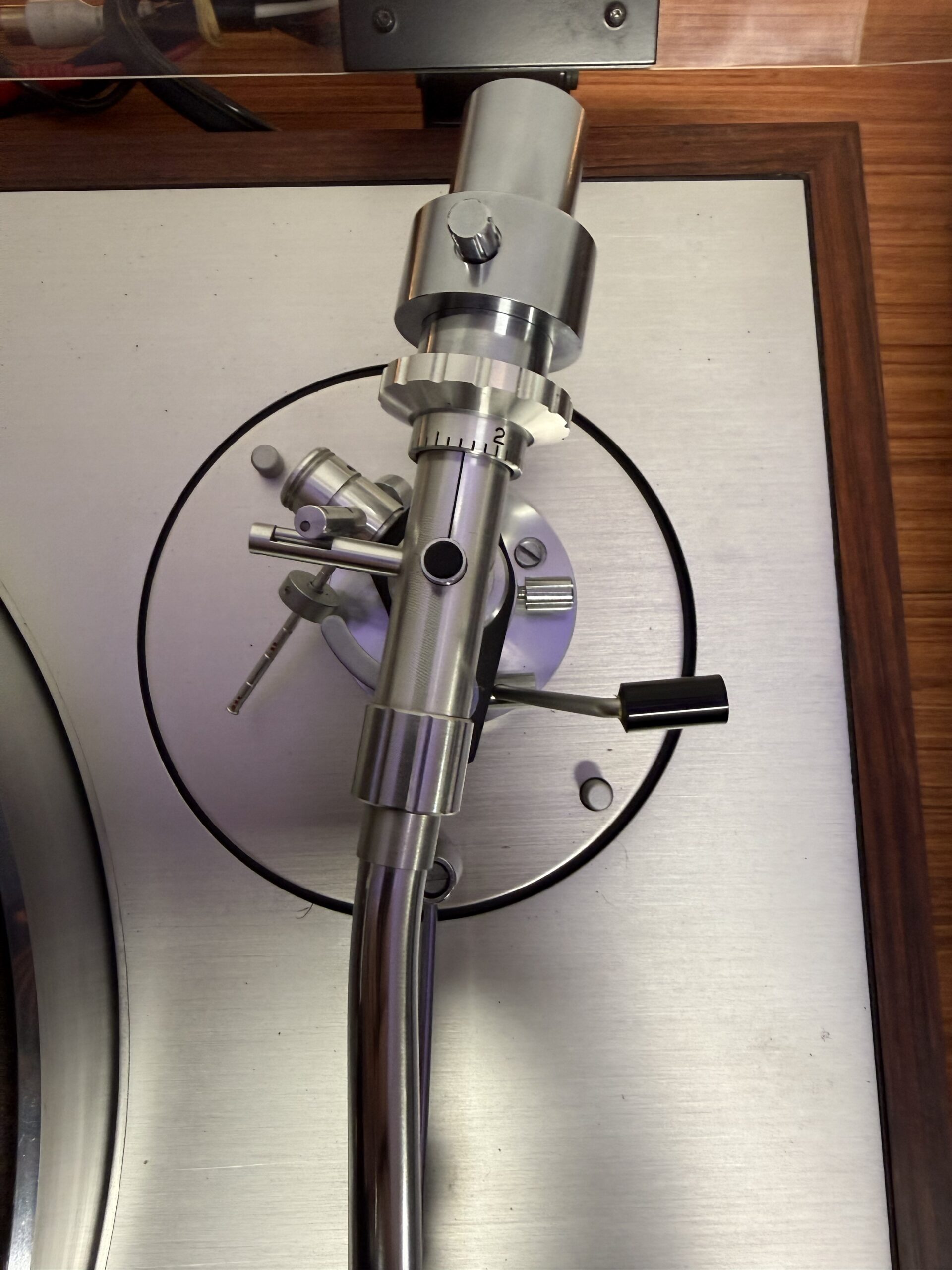

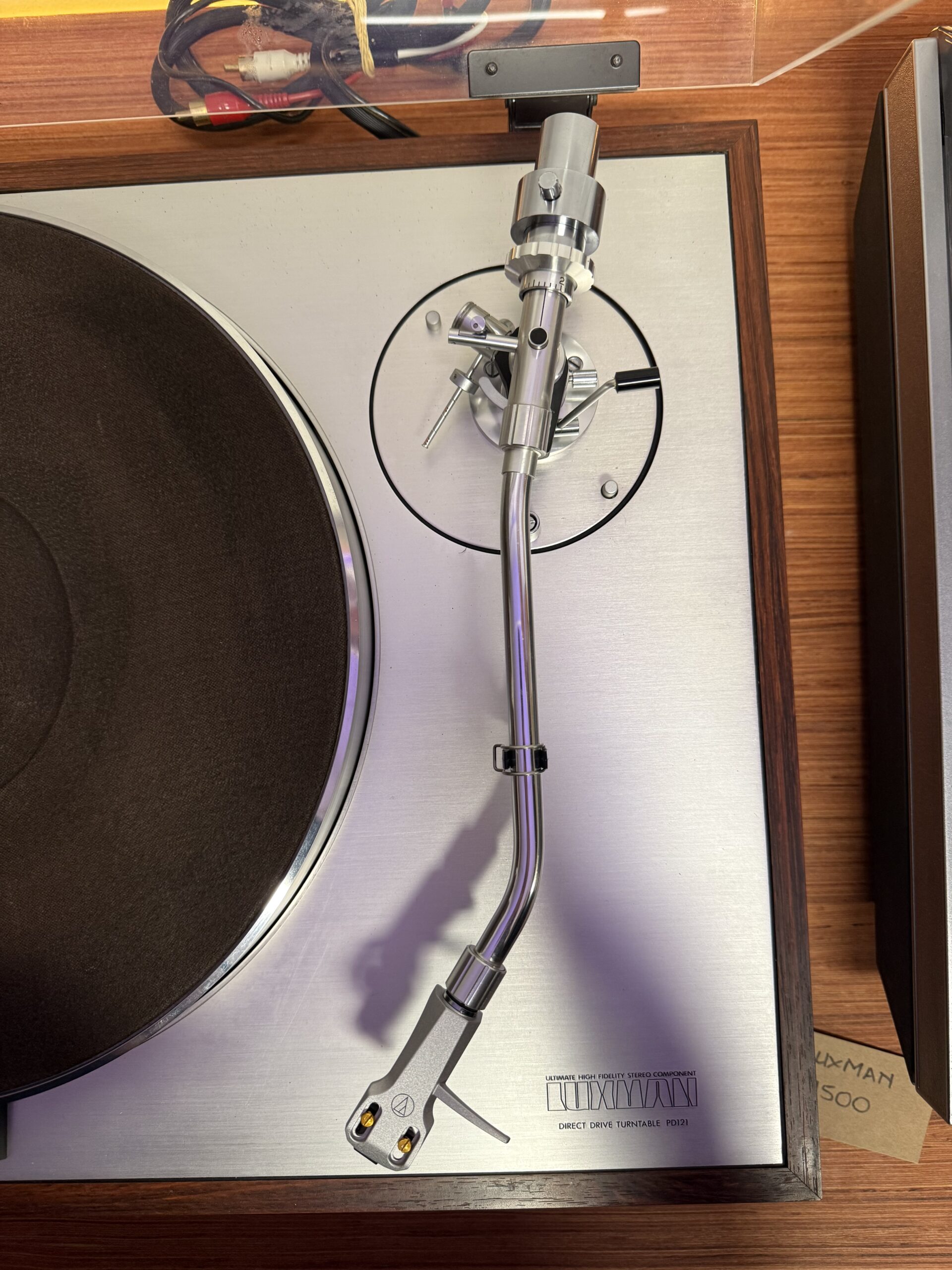

The Stax UA-7 is a multi-use, integrated tonearm with replaceable arm tube.
Cartridge: Magnetic or condenser types
Bearing: Special dual suspension type
Balancing: Static balancing
Arm lifter: Oil damped
Output cable: Noiseless low capacitance type
Rotational friction: 5mg or less
Bias compensation: 1-3g variable
Weight of pickup cartridge: 2-16g
Effective length: 240mm
Mounting distance: 227mm
Overhang: 13mm
Cartridge
The Audio Technica AT30E cartridge is a significant achievement in precision manufacturing.
Completely hand assembled, tolerances are held to just thousands of an inch.
Audio Technica specialised in precision transducers for a decade, building an international reputation for accuracy and uniformity.
The dual moving microcoil series of phono cartridges is the latest refinement of this tradition of craftsmanship and advanced design.
Generating element: dual moving microcoil
Frequency response: 15-25,000Hz
Output: 0.28mV
Channel separation: 25dB
Channel balance: 0.75dB
Stylus shape: 0.3 x 0.7 elliptical
Stylus construction: nude
Tracking force: 1.4-2.0g
Weight: 5.0g
Replacement stylus: ATN30E
