Description

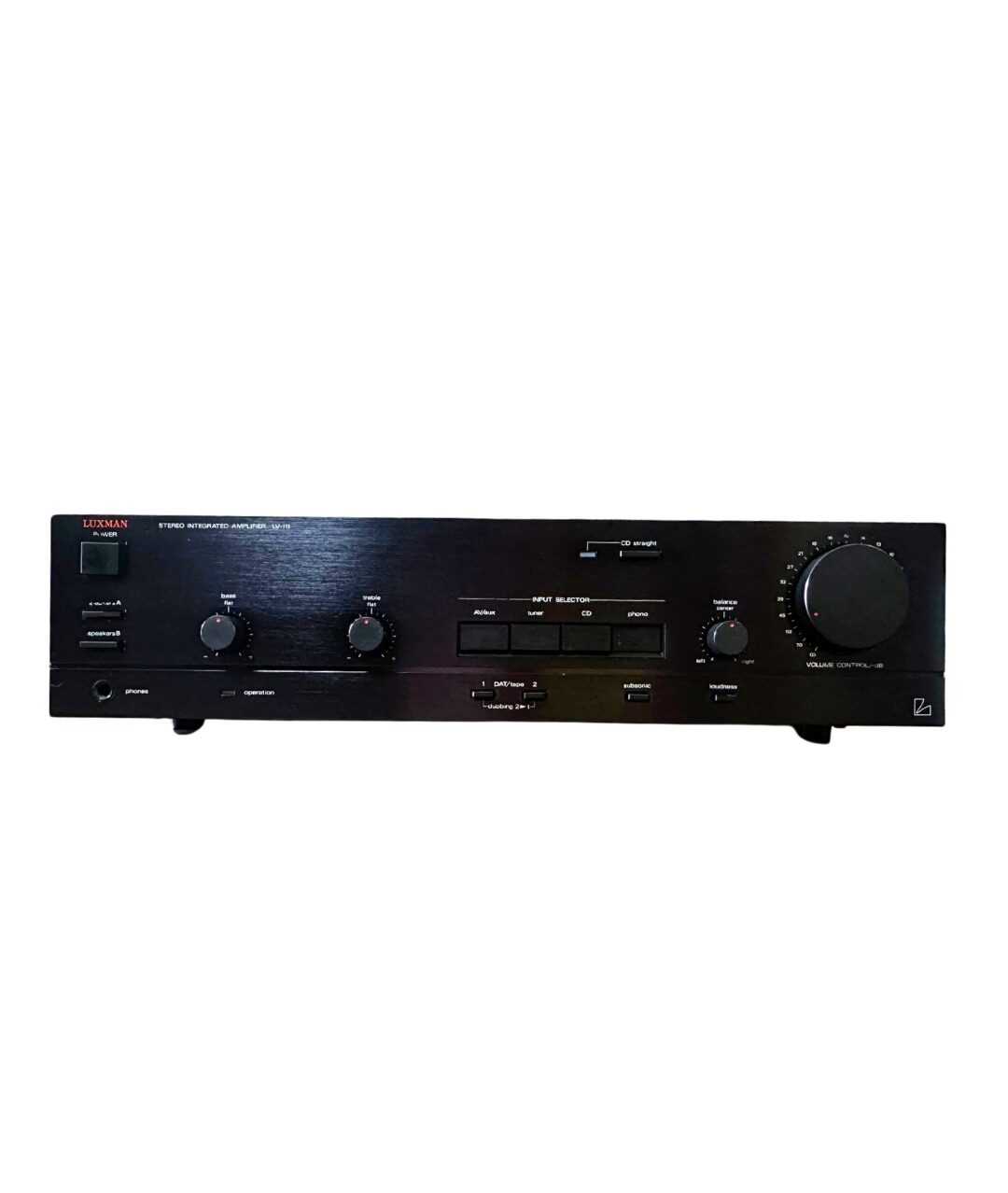

Luxman LV-111 – Stereo Integrated Amplifier
General
Manufacturer: Luxman
Model: LV-111
Type: Integrated amplifier
Years of manufacture: 1988 – 1991
Made in: Korea
Color: Black
Power consumption:
Dimensions: 438 x 110 x 278 mm (WxHxD).
Weight: 6.5 kg
Original price approx.: 598 DM (1990)

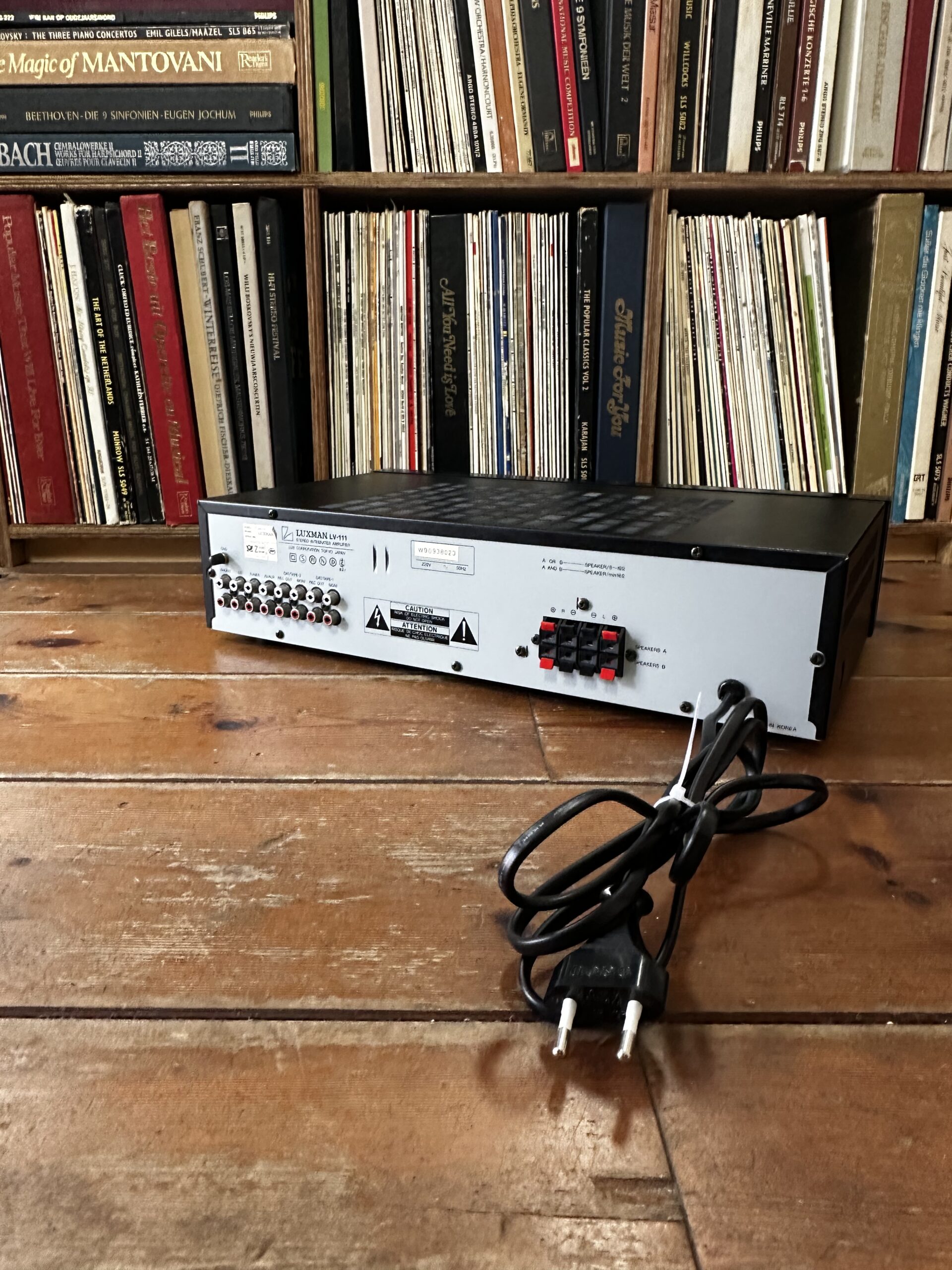

Connections
Number of inputs: 6 (Cinch)
Phono MM: 2.5 mV / 50 kOhm CD: 150 mV / 40 kOhm
Tuner: 150 mV / 40 kOhm
AV/Aux: 150 mV / 40 kOhm
DAT/Tape 1, 2: 150 mV / 40 kOhm
Number of outputs: 2 (Cinch)
DAT/Tape 1, 2 Rec Out:
Headphones
2 pairs of loudspeakers
Technical Data
Continuous power (at distortion factor)
8 Ohm (20Hz – 20kHz): 2x 45 W (0.05%)
8 Ohm (1kHz): 2x 50 W (0.008% at 45 W)
Dynamic power
8 Ohm: 2x 70 W
4 Ohm: 2x 110 W
IM distortion (8 Ohm, 60Hz:7kHz = 4:1): 0.008% (45 W)
Attenuation factor:
Frequency response
Phono (MM): 20Hz – 20kHz (±0.5dB)
High Level: 10Hz – 80kHz (+1, -3dB) Signal to Noise Ratio (IHF-A weighted, input shorted) Phono (MM) (5mV, input): 85 dB High Level: 97 dB
Stereo Channel Separation:
Tone Control:
Bass: ± 8dB (100Hz)
Treble: ± 8 dB (10 kHz)
Loudness (VR: -30dB): +8dB (100Hz), +5dB (10kHz)
Subsonic: yes (signals below 15Hz are cut by -3dB per octave)
Mute: no
Direct/Line-Straight: yes
Special Features
DAT/Tape monitor buttons
