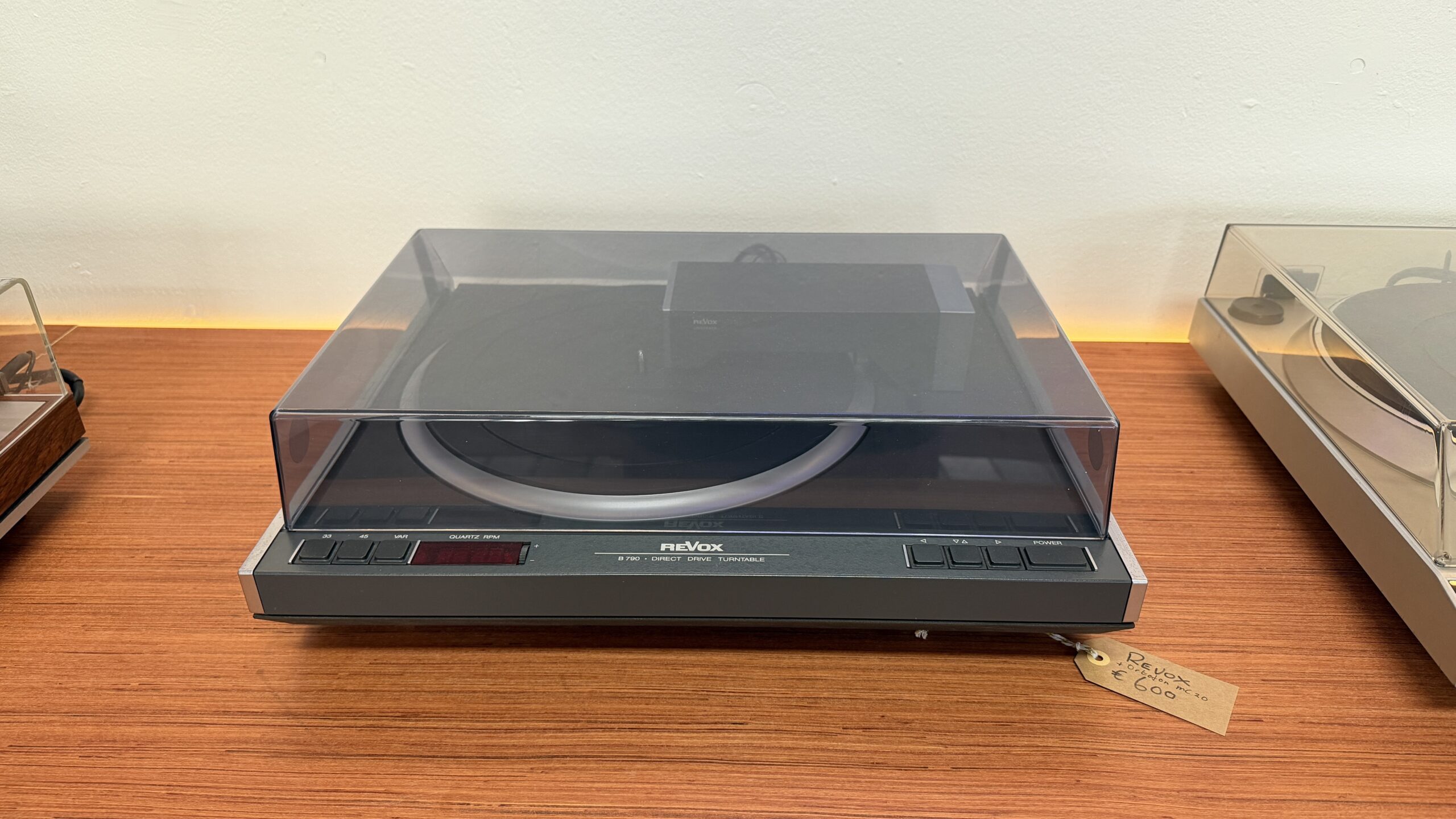

Revox B-970 - Direct Drive Turntable - Ortofon mc 20 - Image 2

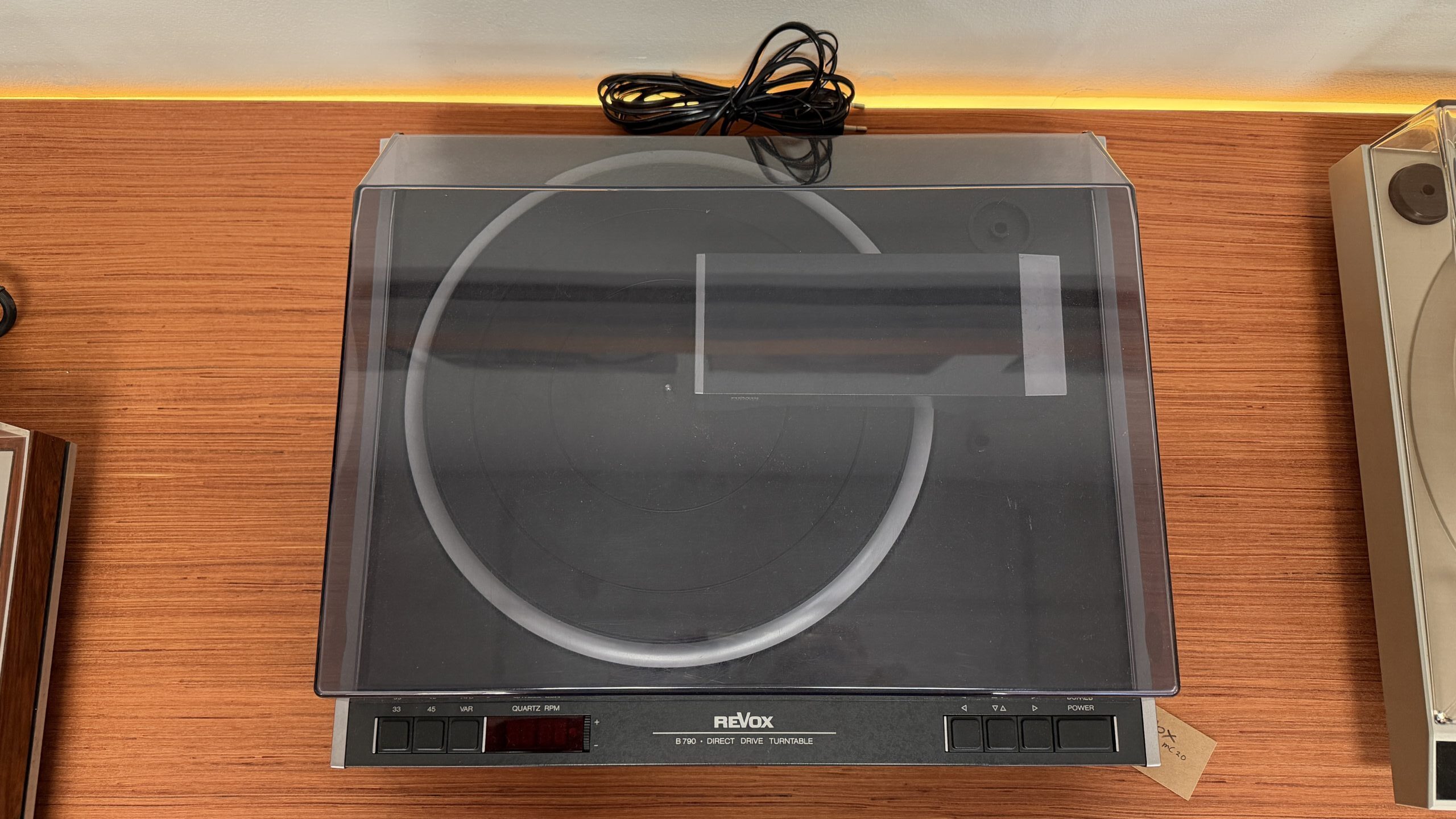

Revox B-970 - Direct Drive Turntable - Ortofon mc 20 - Image 3

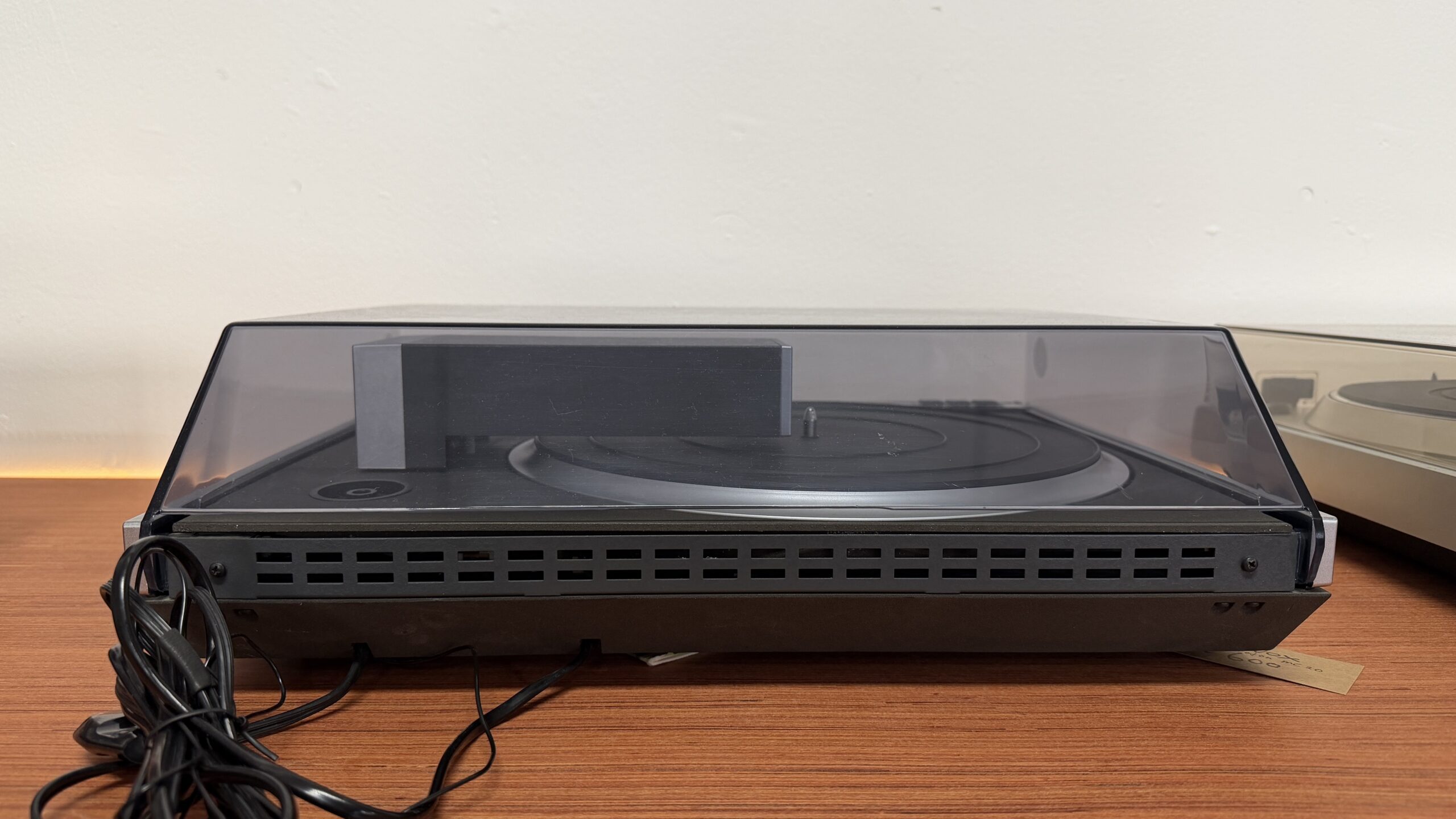

Revox B-970 - Direct Drive Turntable - Ortofon mc 20 - Image 4

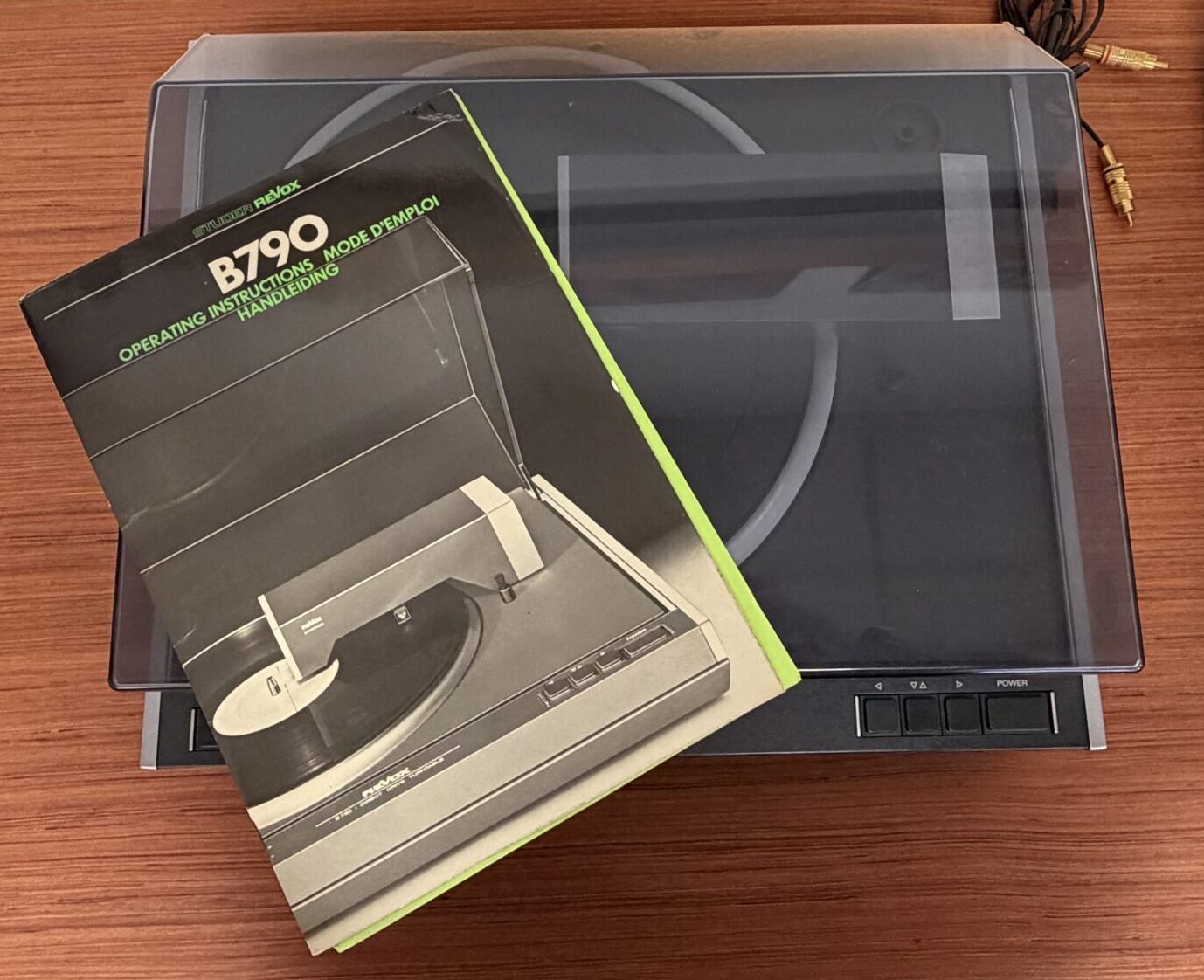

Revox B-970 - Direct Drive Turntable - Ortofon mc 20 - Image 5

Revox B-970 – Direct Drive Turntable – Ortofon mc 20

€ 600,00

Revox B-970 – direct drive turntable – Ortofon mc 20

Specifications

Turntable speeds: 33.33 and 45.00 rpm

Speed accuracy: +-0.01%

Manual speed variation: +-7% approx

Speed indication: 4-digit LED readout, quartz precise

Platter (turntable proper): 312mm diameter, 1.1kg weight

Run-up time: better than 2 seconds at 45rpm

Braking time: better than 1.5 seconds from 45 to 33.33rpm

Wow and flutter: better than 0.05% (weighted)

Signal to noise ration: better than 65dB

*This is a refurbished product in full working condition, sold with two months warranty.



In stock

Categories: ,

Description

Revox B-970 – direct drive turntable – Ortofon mc 20

Description

Turntable

The Revox B790 is a Quartz controlled direct drive turntable with Linear tracking tonearm.

The tonearm has servo electronic follow up control and electronically controlled, pneumatically damped lowering.

The unit’s output is electronically muted until the stylus contacts the record



Cartridge

Weight: 7g

Output voltage: 0.07mV (mkI), 0.09mV (mkII)

Internal resistance: 2.5 ohms (mkI), 3 ohms (mkII)

Tracking angle: 20 degrees

Frequency response: 20 to 20,000Hz

Channel separation: 25dB

Channel balance: 2dB (mkI), <1.5dB (mkII)

Stylus: fine-line 8 um (mkI), nude oriented diamond 0.14 x 0.07mm (mkII)

Tip mass: 0.5mg

Tracking force: 1.7g (1.5 to 2.0g)
