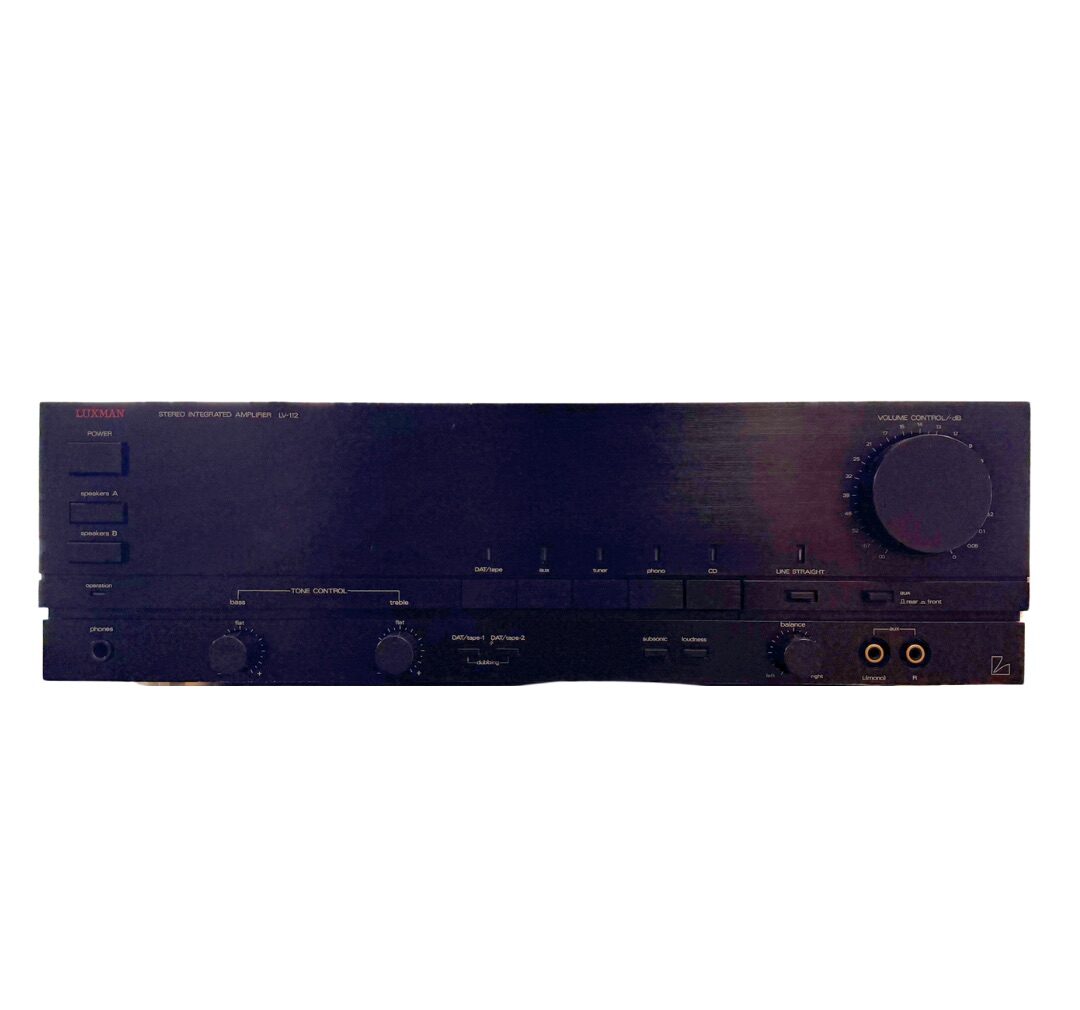

Luxman LV-112 – Stereo Integrated Amplifier
General
Manufacturer: Luxman
Model: LV-112
Type: Integrated amplifier
Years of manufacture: 1988 – 1991
Made in: Japan
Color: Black
Power consumption:
Dimensions: 438 x 137 x 365 mm (WxHxD).
Weight: 9 kg
Original price approx.: 948 DM (1990)

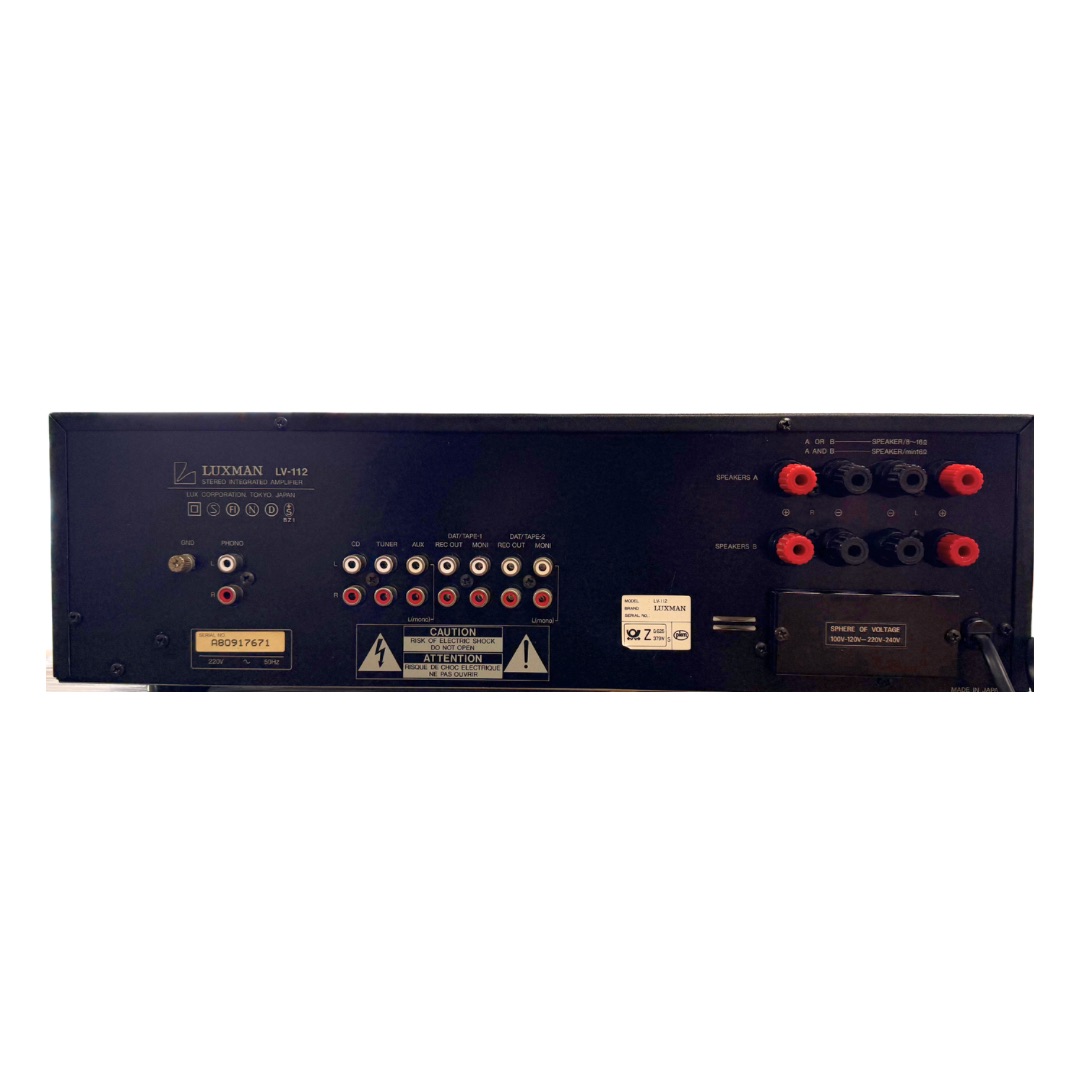

Connections
Number of inputs:
Phono MM: 2.5 mV, 50 kOhm
CD: 150 mV, 40 kOhm
Tuner: 150 mV, 40 kOhm
DAT, Tape Play 1, 2: 150 mV, 40 kOhm
Aux: 150 mV, 40 kOhm (switchable front or rear inputs)
Number of outputs:
Tape Rec 1, 2:
Headphones:
2 speaker pairs
Technical Data
Continuous power (at distortion factor)
8 Ohm: 2x 60 W (RMS, 20 Hz – 20 kHz)
4 Ohm: 2x 90 W
Dynamic power
8 Ohm:
4 Ohm: 2x 120 W
Total harmonic distortion: 0.007 % (1 kHz)
Attenuation factor:
Frequency response:
Phono MM: 20 Hz – 20 kHz, ± 0.3 dB
CD, Tuner, Tape: 1 Hz – 150 kHz, – 3 dB Signal-to-noise ratio:
Phono MM: 87 dB
CD, Tuner, Tape: > 105 dB
Tone control
Bass (100 Hz): ± 5 dB
Treble: (10 kHz): ± 6 dB
Loudness: +6 dB/100 Hz; +5 dB/10 kHz
High Filter: no
Low Filter: yes
Line Straight: yes
Special Features
Aux input on the front panel
