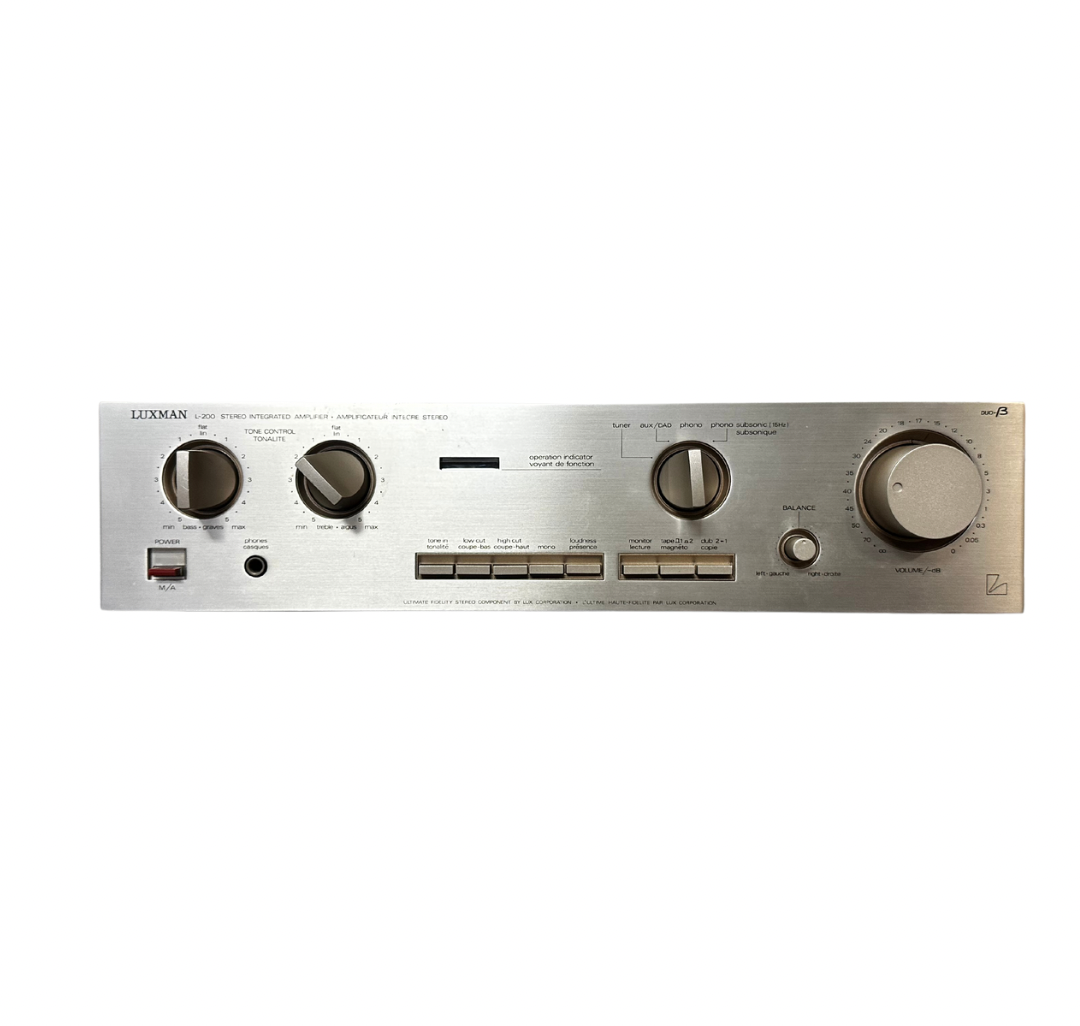

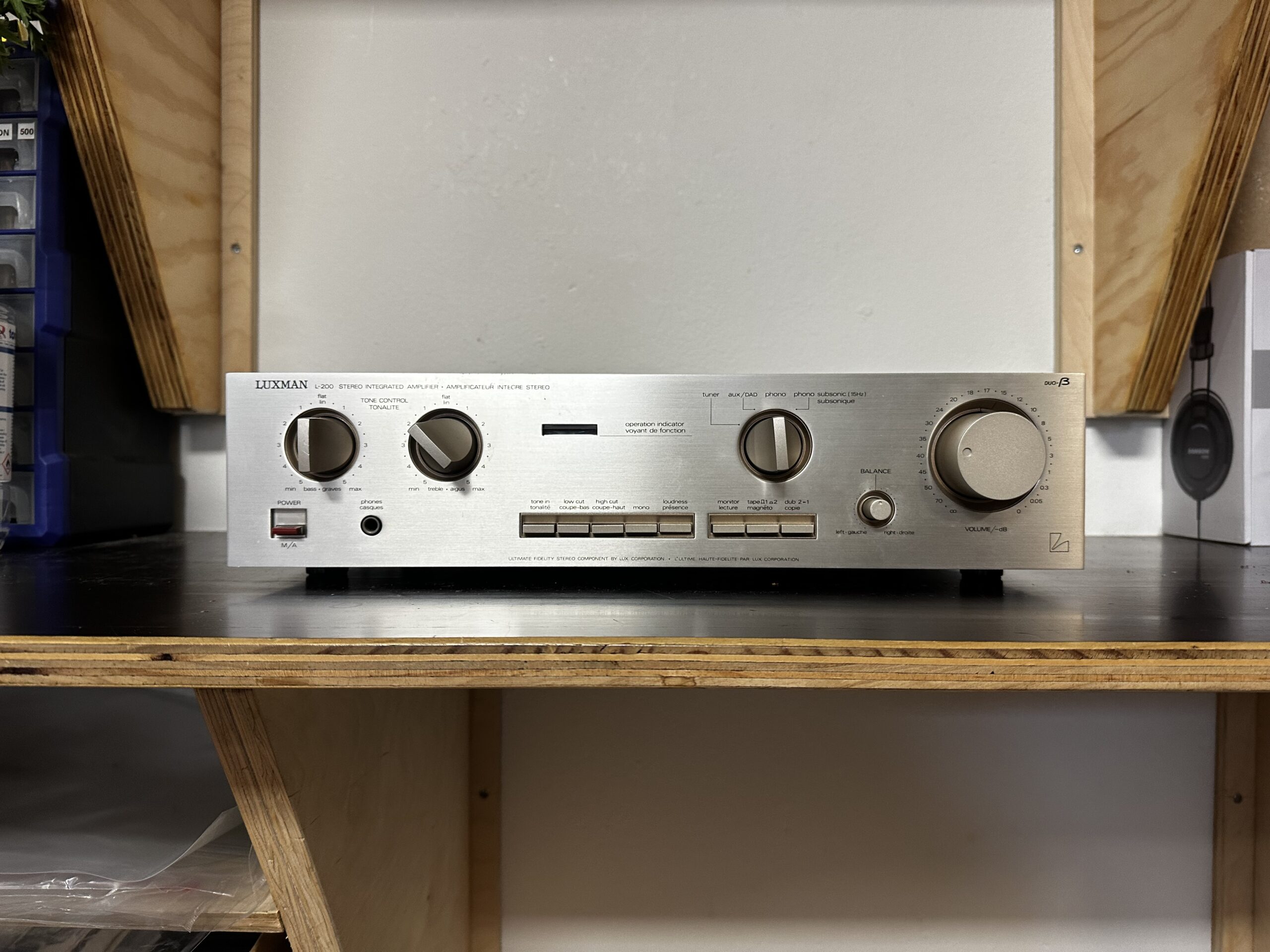

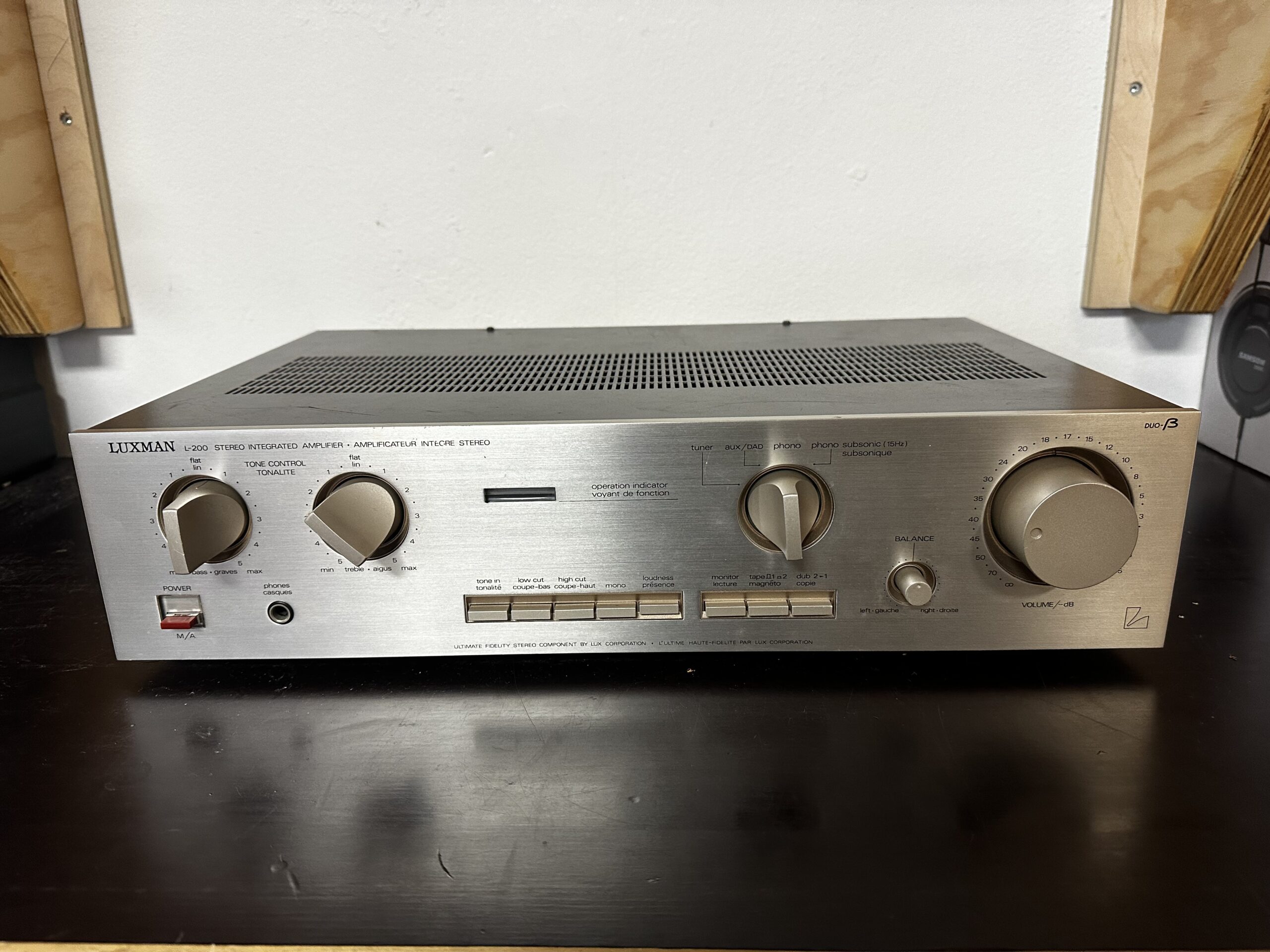

Luxman L-200 – Stereo Integrated Amplifier
€ 250,00
Luxman L-200 – Duo Beta Stereo Integrated Amplifier
Specifications
Power output: 40 watts per channel into 8Ω (stereo)
Frequency response: 10Hz to 100kHz
Total harmonic distortion: 0.02%
Input sensitivity: 1.8mV (MM), 160mV (line)
Signal to noise ratio: 90dB (MM), 107dB (line)
Dimensions: 453 x 317 x 111mm
Weight: 6.7kg
*This is a refurbished product in full working condition, sold with two month warranty
In stock
Description
Luxman L-200 – Duo Beta Stereo Integrated Amplifier
General
Manufacturer: Luxman
Model: L-200
Type: Integrated amplifier
Years of manufacture: 1982 – 1985
Made in: Japan
Color: Champagne, matt brushed
Remote control: no
Power consumption:
Dimensions: 453 x 317 x 111 mm (WxDxH).
Weight: 6.7 kg
Original price approx.: 500 DM

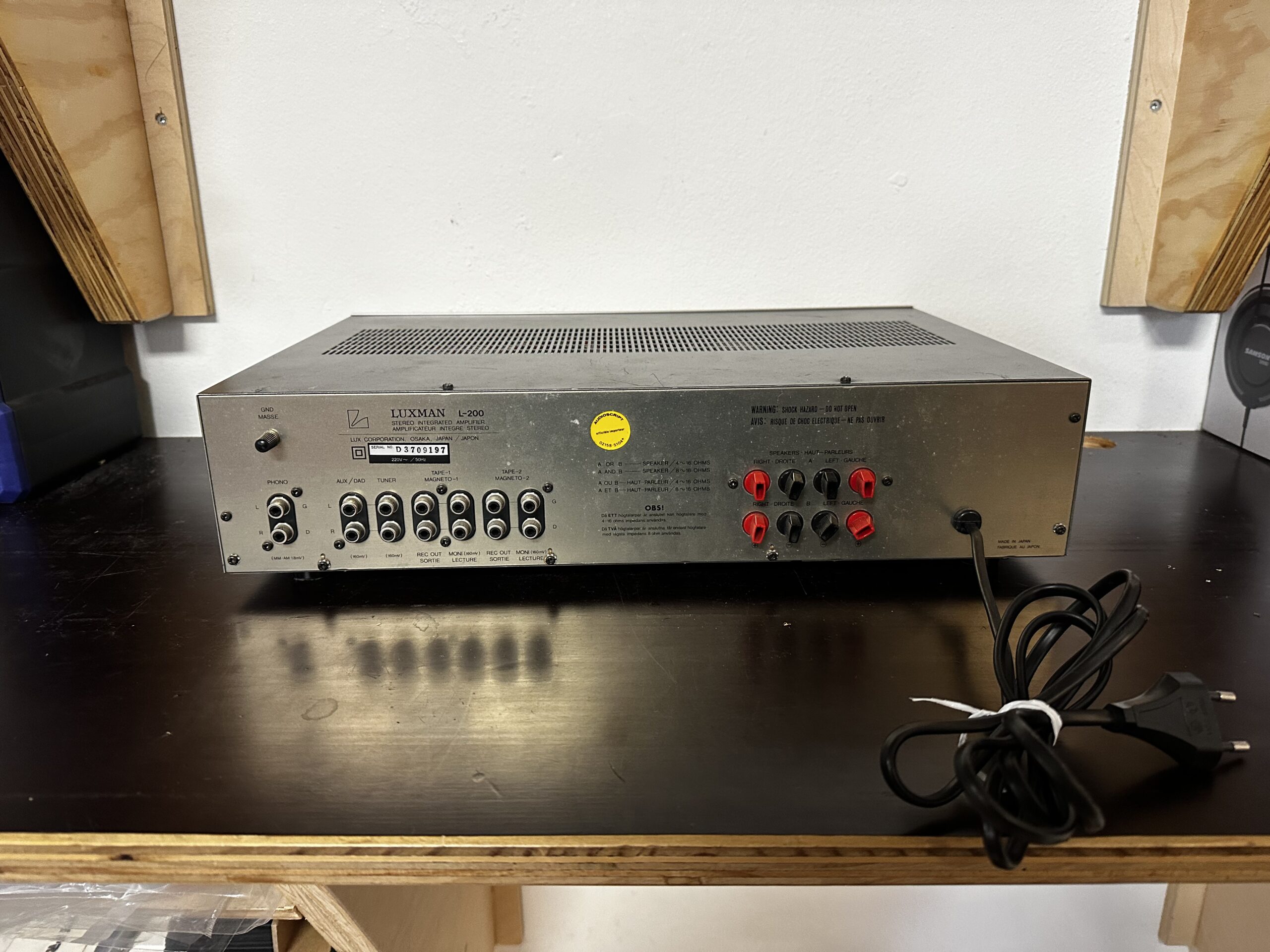

Connections
Number of inputs:
Phono-MM: 1,8 mV, 50k Ohm
Tuner: 160mV, 40k Ohm
AUX: 160mV, 40k Ohm
DAD: 160mV, 40k Ohm
Tape Play: 200mV, 40k Ohm
Main in: 200mV, 50k ohms
Number of outputs:
Tape Rec:
Pre-out: 200mV
Headphones
2 pairs of loudspeakers
Technical Data
Continuous power (at distortion factor)
8 Ohm: 2 x 40 Watt (DIN)
4 Ohm:
Dynamic power
8 Ohm:
4 Ohm:
Total harmonic distortion: 0.02 % (1 kHz)
Attenuation factor:
Frequency response: 10 Hz – 100 kHz, – 1.5 dB
Signal-to-noise ratio:
Phono MM: > 90 dB
CD, Tuner, Line, AV-Audio: > 107 dB

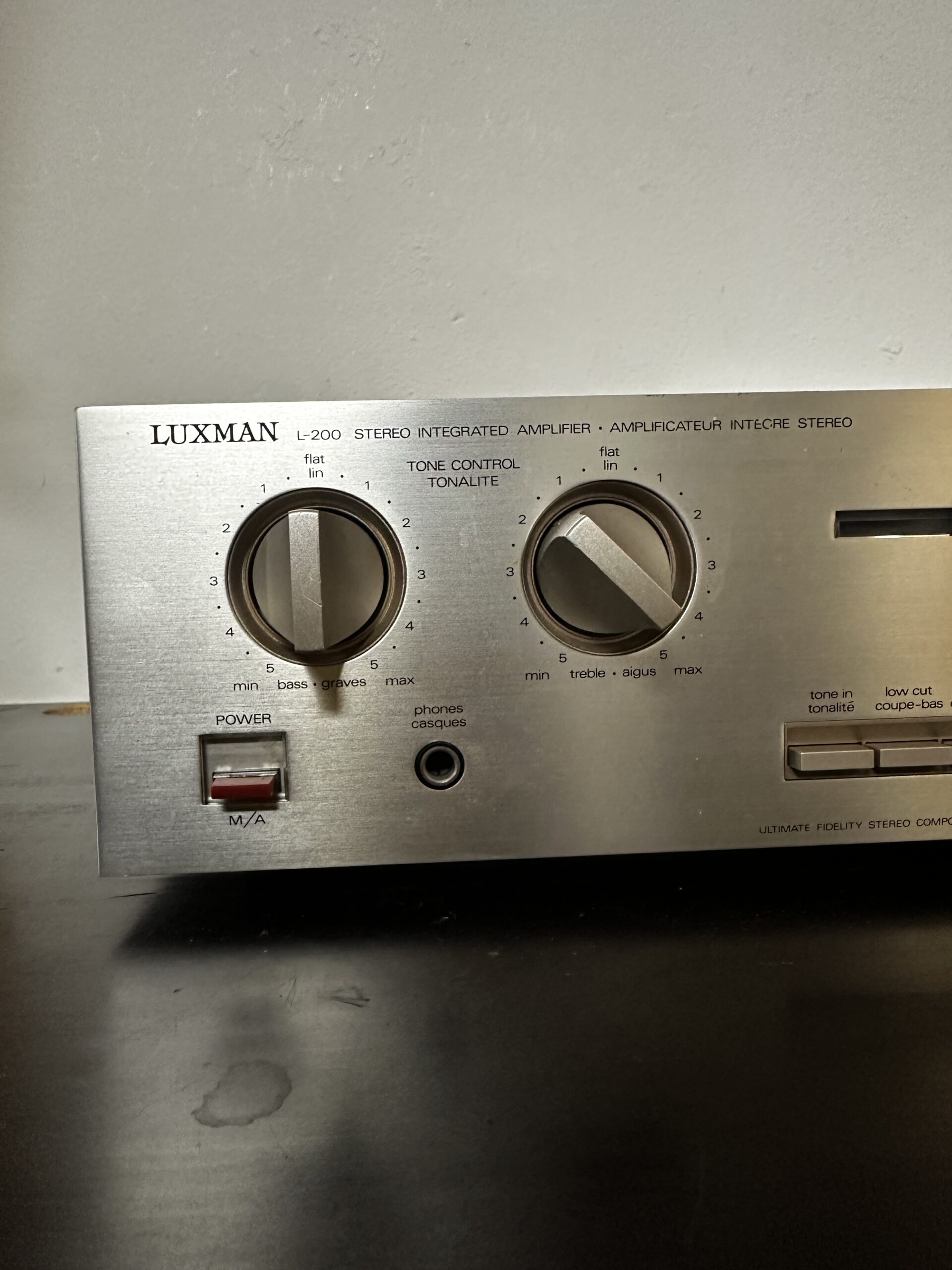

Tone control
Bass (100 Hz): ± 8 dB
Treble: (10 kHz): ± 8 dB
Loudness: + 7.5 dB at 100 Hz, + 4.5 dB at 10 kHz
High Filter: 7 kHz, – 6 dB / octave
Low Filter: 70 Hz, – 6 dB / octave
Special Features
“Duo-Beta” technology
